Description

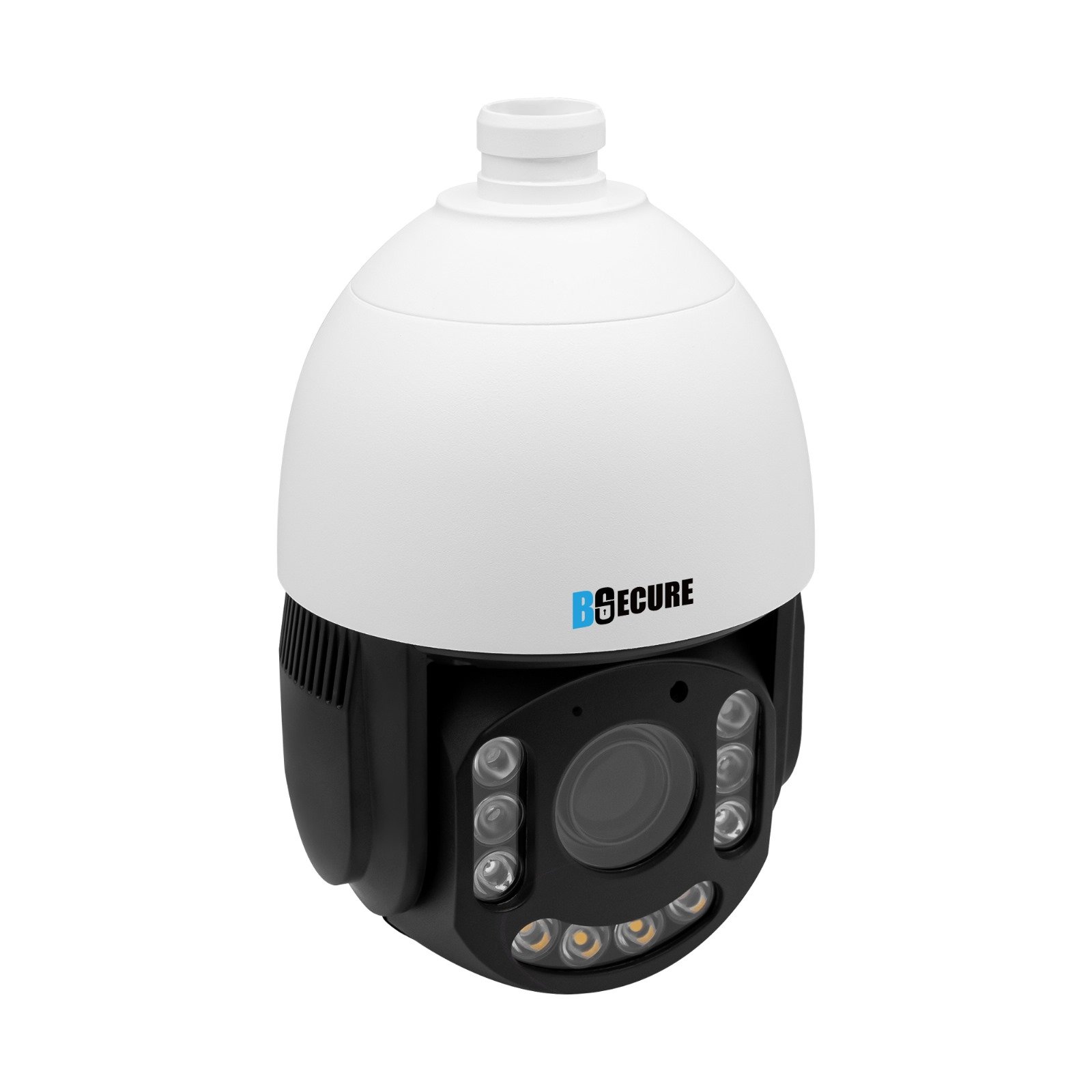

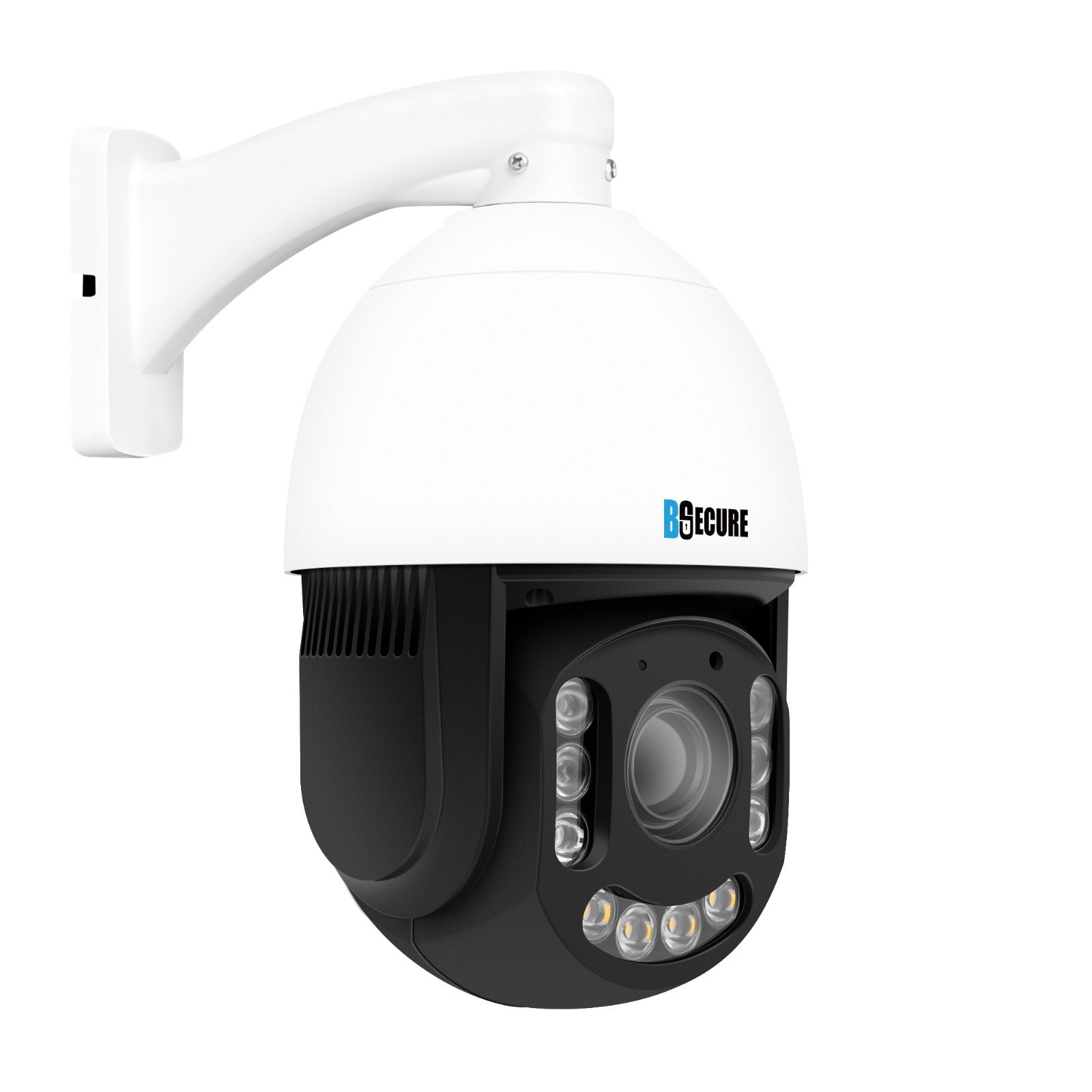

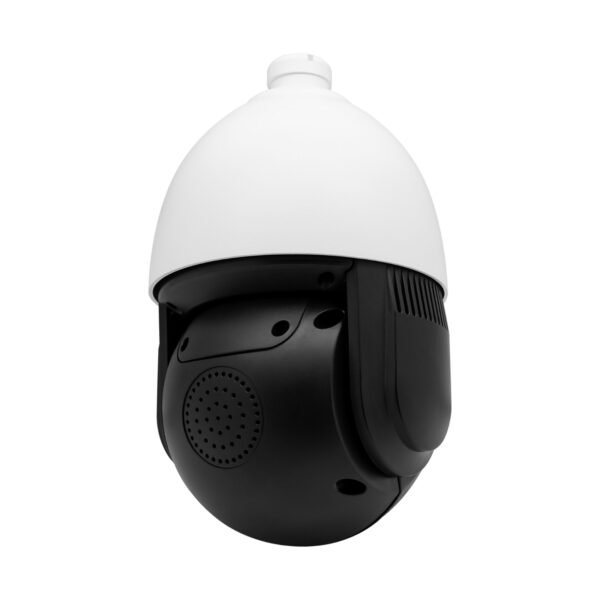

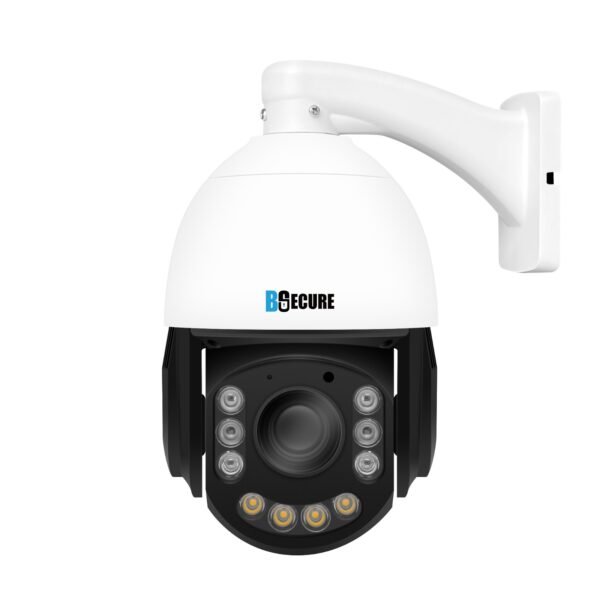

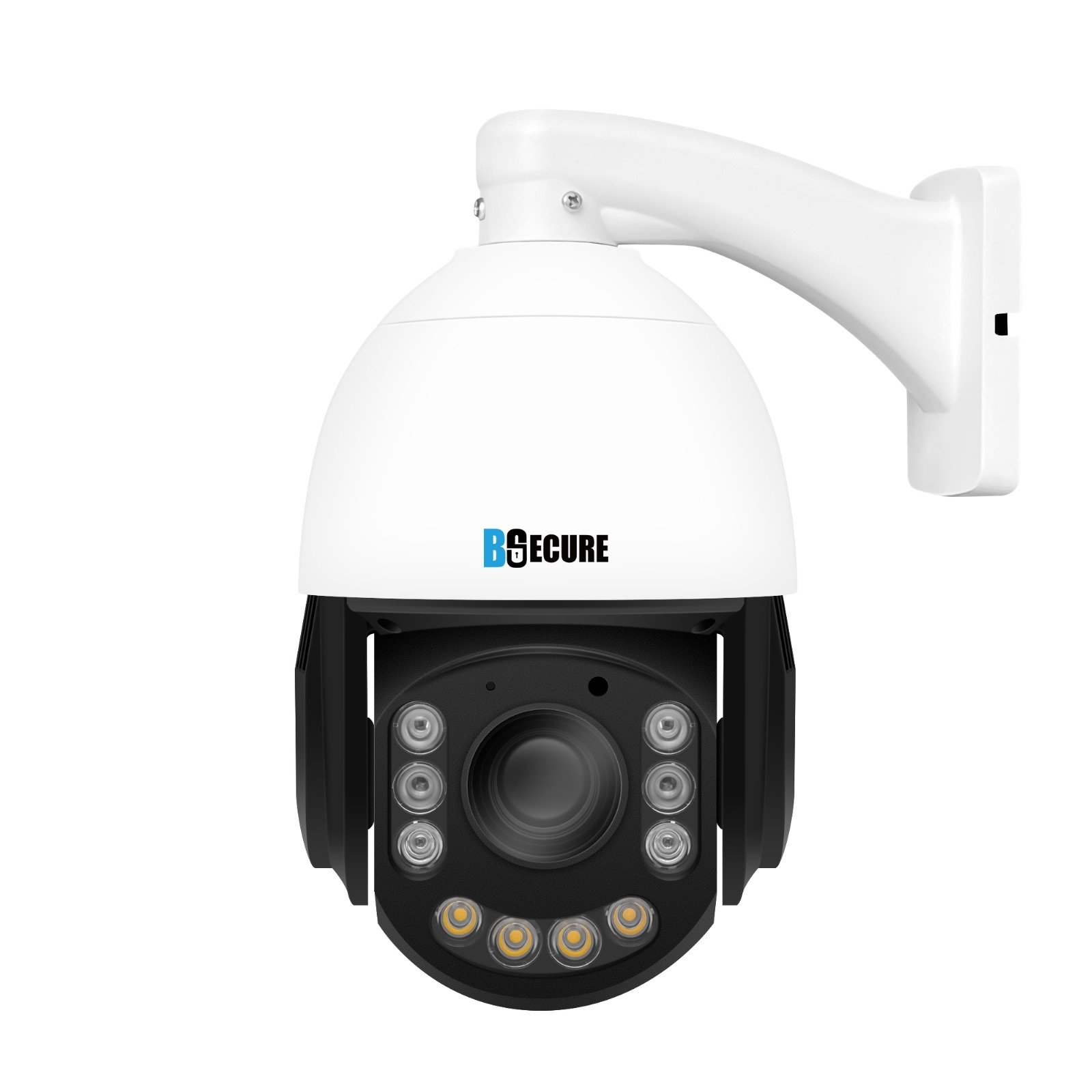

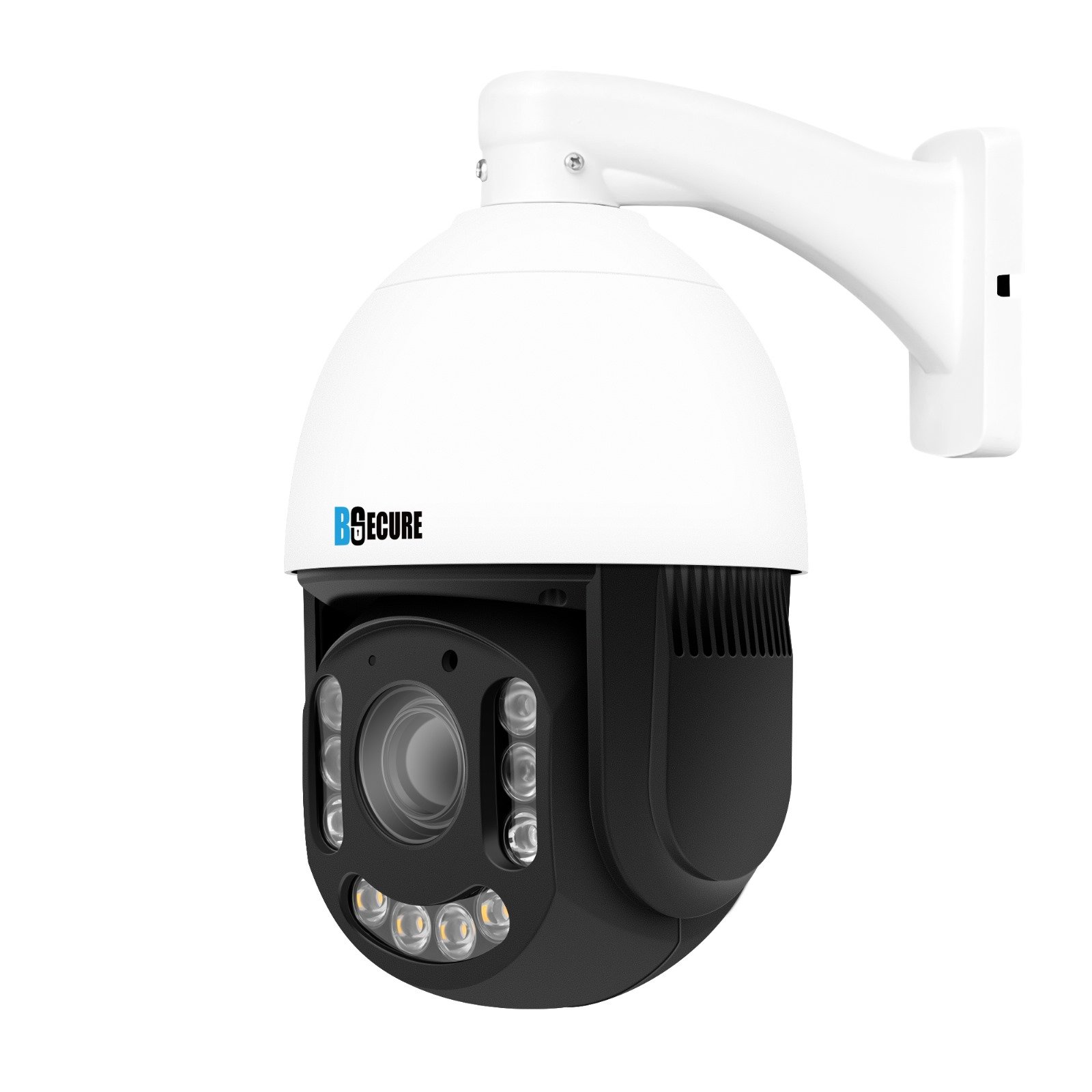

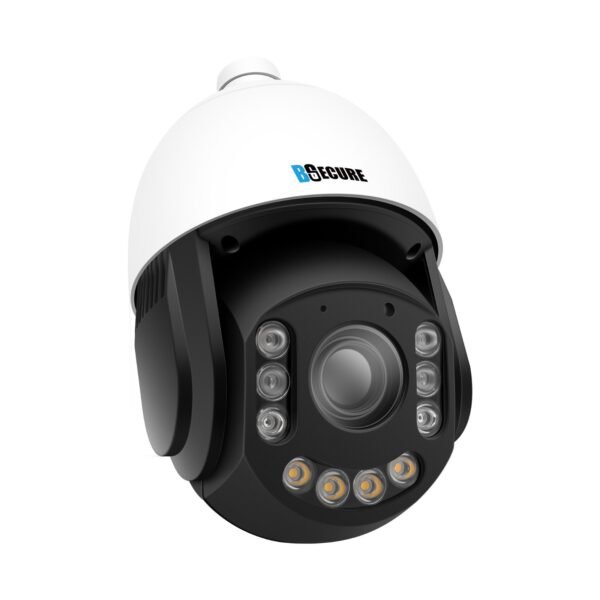

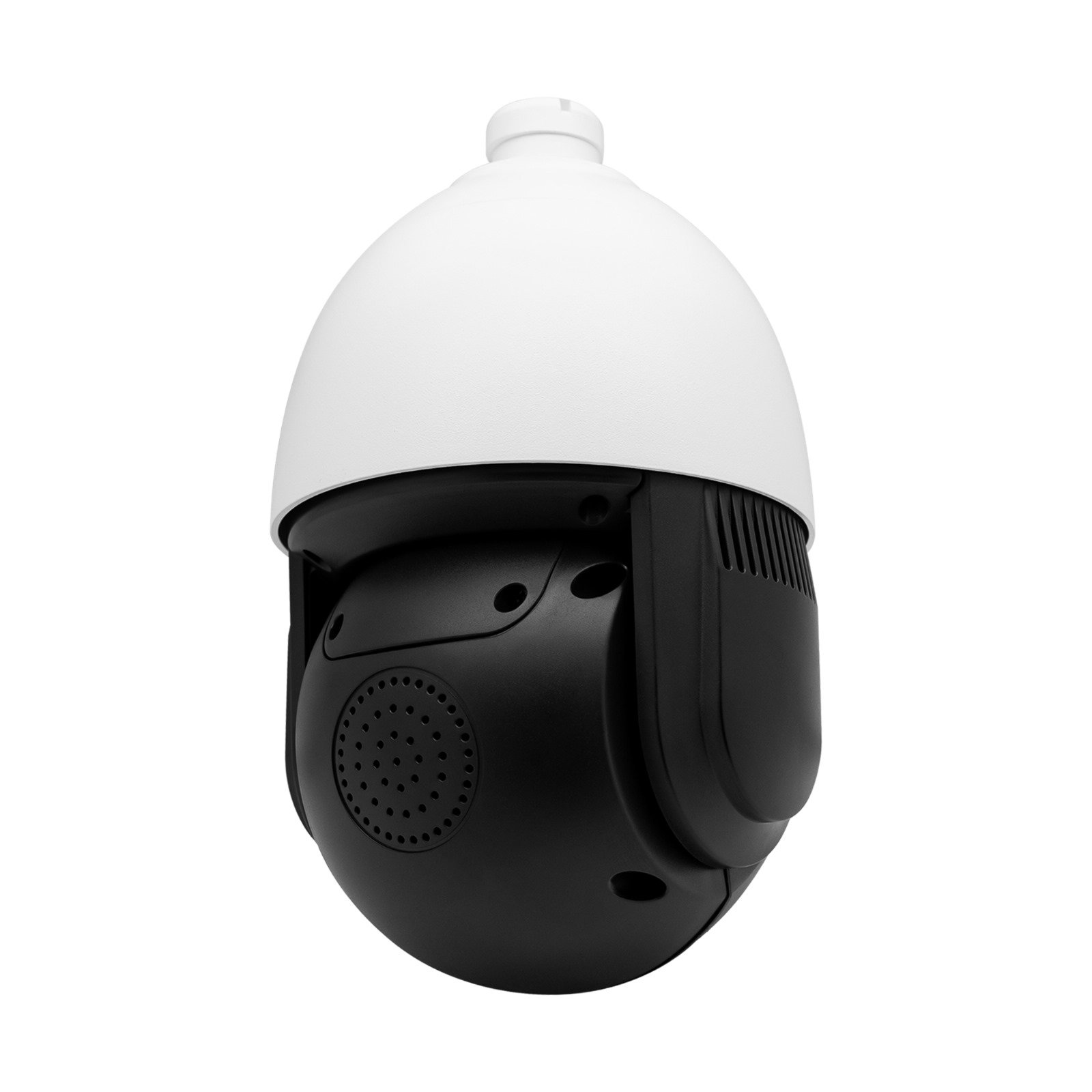

Model YC-M608FIRC-HS20X-Y Specifications
Camera
- Image Sensor: 1/2.8″ Sony CMOS
- Effective Pixels: 8 megapixels
- Electronic Shutter: AUTO, 1/10s ~ 1/100000s
- Minimum Illumination: 0.01Lux@F1.2 (AGC ON)
- Day/Night Mode: Auto / Color / B&W / Timing
- Wide Dynamic Range (WDR): Digital WDR
- White Balance: Auto / Manual
- Backlight Compensation (BLC): Supported
- Highlight Compensation (HLC): Supported
- Noise Reduction (DNR): 2D/3D DNR
- Additional Features: Image Adjust, Flip
Encoding
- Video Standard: H.264 / H.265 / MJPEG
- Video Resolution:
- Main Stream: 20fps@8MP (3840×2160), 30fps@6MP (3072×2048) / 5MP (2592×1944) / 4MP / 3MP / 1080P / 720P, etc.
- Sub Stream: 720×480 / VGA (640×480) / 360P / QVGA @ 30fps, etc.
- Video Bitrates: 512Kbps – 12Mbps, VBR/CBR
- Audio Standard: G.711-u / G.711-a / AAC
- Two-Way Audio: Yes; Built-in mic and speaker
Detection
- Human Detection: Supported
- Vehicle Detection: Supported
IR and Warm Light
- IR LEDs: 6 pcs array IR LEDs
- Warm Light LEDs: 4 pcs warm light LEDs
- IR Distance: 80–100 m
- Warm Light Distance: 40–50 m
Lens
- Focal Length: 4.7–94 mm
- IRIS: F1.6–3.5
- View Angle: 64°–2.9°
- Zoom: 20x optical zoom, 10x digital zoom
Functions
- Power Over Ethernet (PoE): High power PoE
- Storage: Built-in MicroSD Card Slot (Max 512GB)
PTZ (Pan, Tilt, Zoom)
- Pan/Tilt Range: Pan: 0°–360°; Tilt: -5°–90°
- Preset Points: 256
- Control Speed: Pan: 0.5°–30°/s; Tilt: 0.5°–30°/s
- A-B Scanning: Supported
- Auto Cruising: 8 groups patrol, Max. 16 presets per group
- Power-on Action: Preset / Scan / Cruise
- Power-off Recovery: Supported
- Smart Tracking: Human Detection Tracking with patrol
Network Services
- Protocols: HTTP / RTSP / FTP / SMTP / DHCP / NTP / NFS / RTMP, etc.
- P2P: Yes
- Web Access: IE, Firefox, Chrome, Edge, Safari
- Media: CMS, Android, iOS
- ONVIF Compatibility: Version 17.06
General
- Network Port: 1 RJ45, 100Mbps, PoE 48V input
- Power Supply: 12 VDC ± 10%, 2A
- Power Consumption: < 22 W
- Operating Temperature: -30℃ to +60℃
- Operating Humidity: 10%–90% RH
