Description

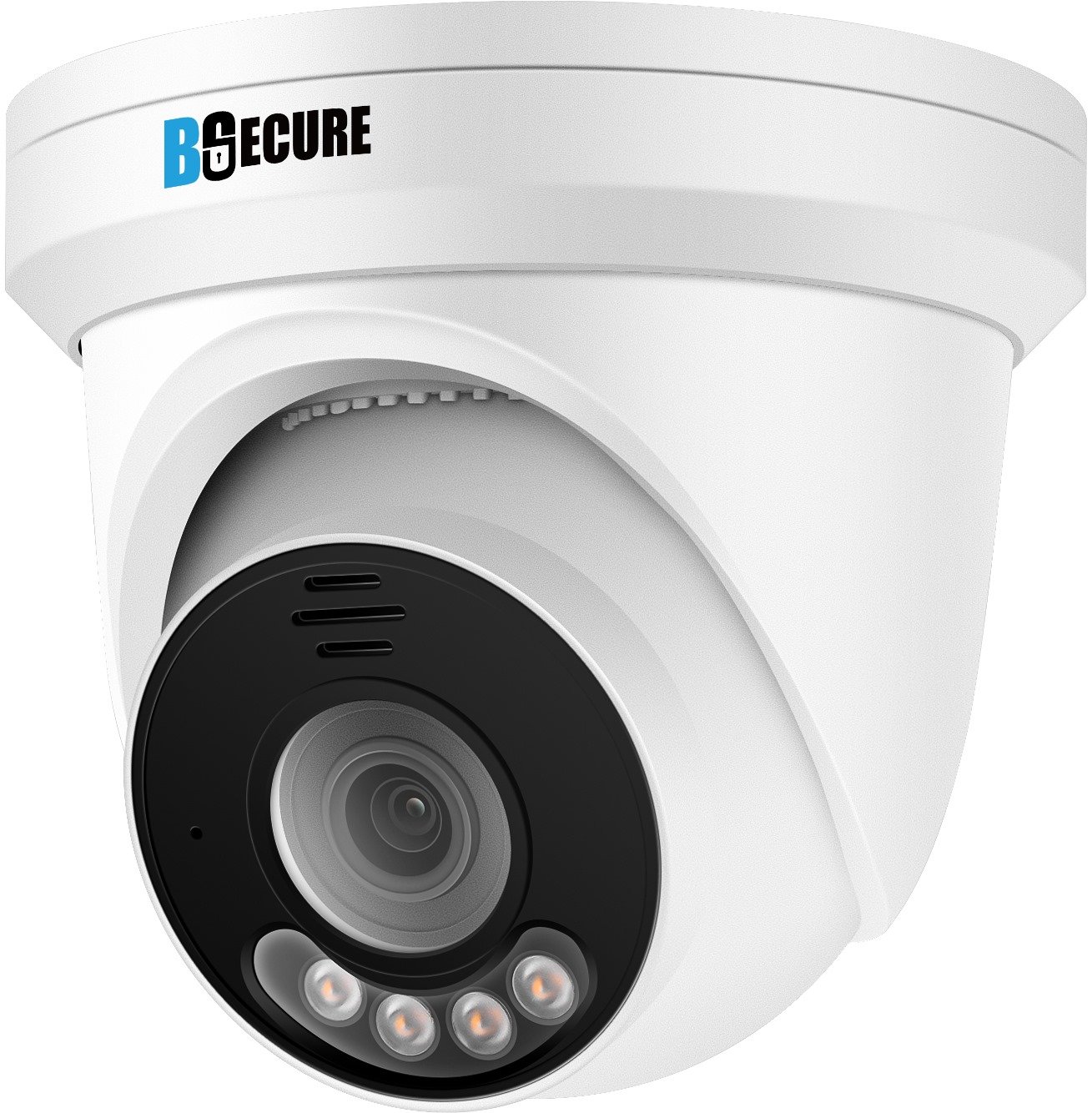

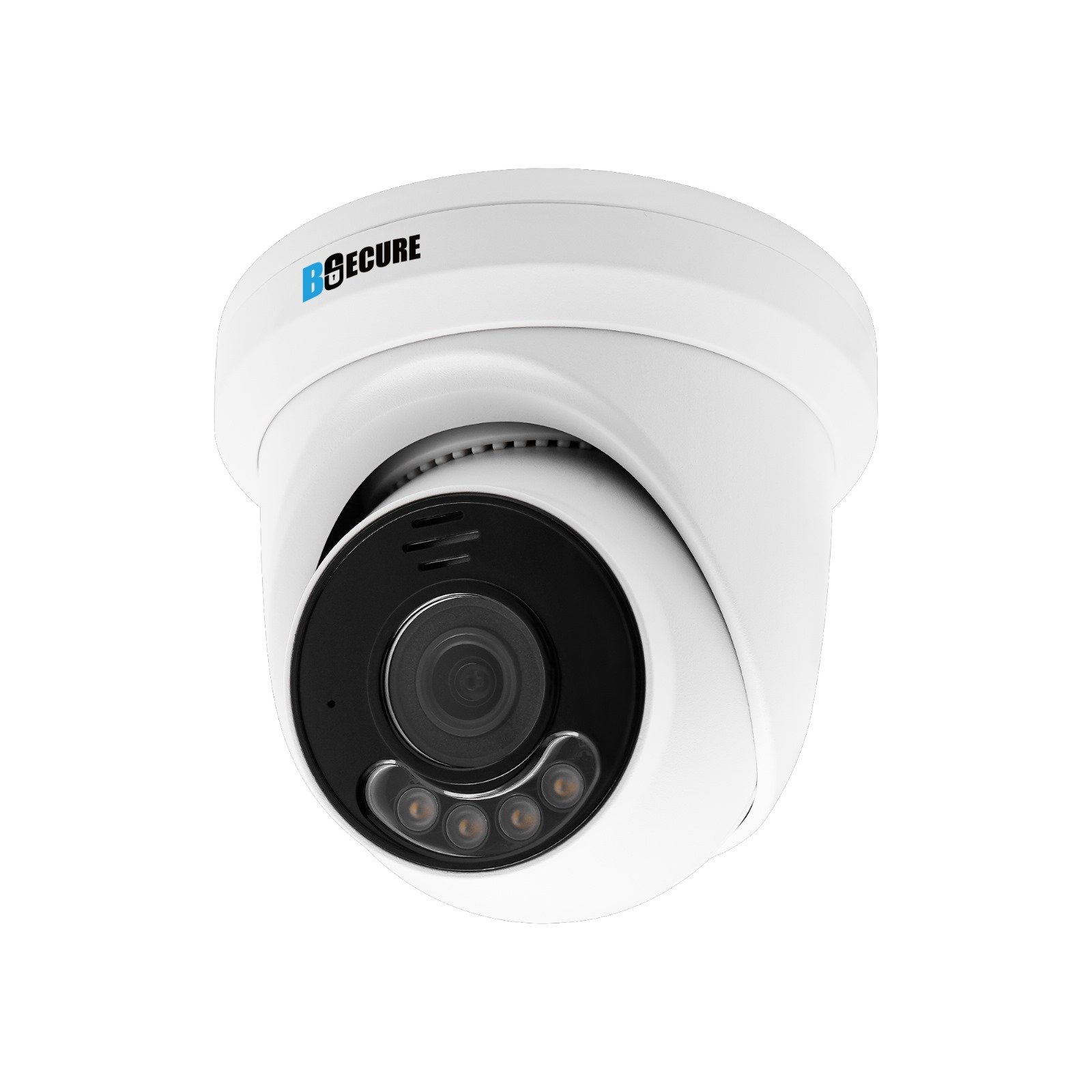

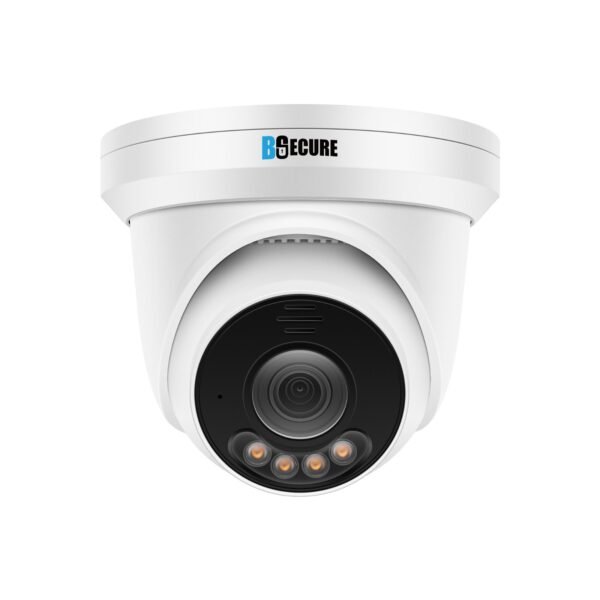

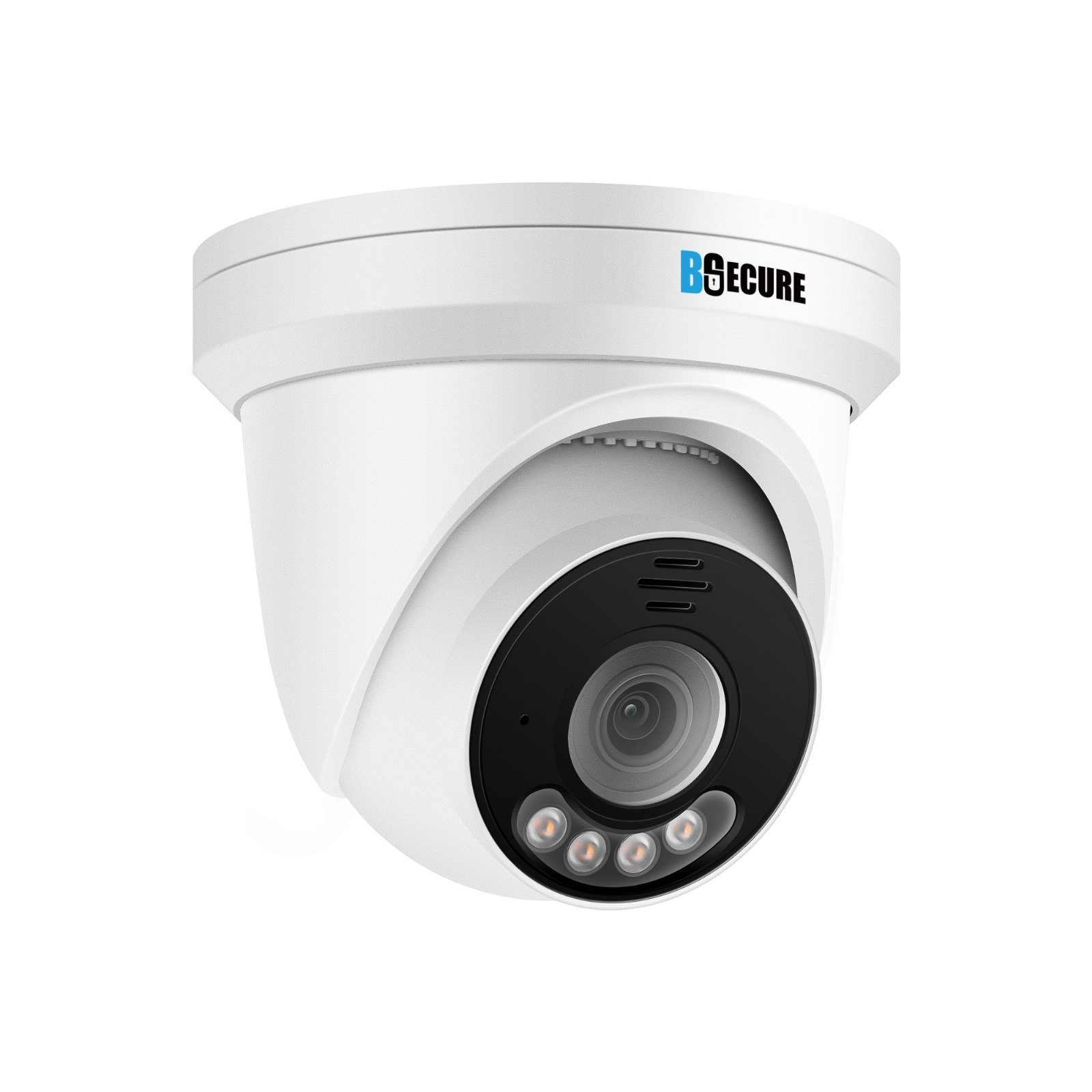

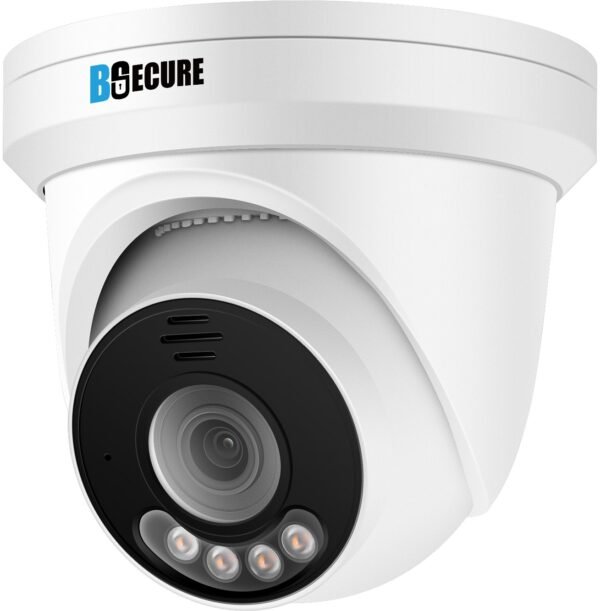

Model YC-W7312ADB99BA Specifications
Camera
- Image Sensor: 1/2.3″ Sony IMX577 CMOS
- Effective Pixels: 12 megapixels
- Electronic Shutter: AUTO, 1/25s ~ 1/100000s
- Minimum Illumination:
- 0.01Lux@F1.2 (AGC ON)
- 0 Lux (IR on)
- Day/Night Mode: Auto / Color / B&W / Timing
- Wide Dynamic Range (WDR): Digital WDR
- White Balance: Auto / Manual
- Backlight Compensation (BLC): Supported
- Highlight Compensation (HLC): Supported
- Noise Reduction (DNR): 2D/3D DNR
- Light Control:
- Modes: Auto / Manual
- Features: Mode switch, Brightness level, OFF, Light ON Illumination
- License Plate Mode: Yes
- Additional Features:
- Multi-line OSD
- Custom Title
- Privacy Mask
- Flip
Encoding
- Video Standard: H.265+ / H.265 / H.264
- Video Resolution:
- Main Stream:
- 25/30fps@12MP (4000×3000) / 8MP (3840×2160) / 6MP (3072×2048) / 5MP (2592×1944) / 4MP / 3MP / 1080P / 720P, etc.
- Sub Stream:
- 720×480 / VGA (640×480) / 360P / QVGA @ 30fps, etc.
- Main Stream:
- Video Bitrates: 512Kbps – 12Mbps, VBR/CBR
- Audio Standard: G.711-u / G.711-a / AAC
- Built-in Mic: Yes, with Audio Echo Cancellation
- Built-in Speaker: Yes, supports Two-way Audio
- Memory Slot: Yes, supports up to 512GB
- OSD Overlay: Title and Time Overlay, Snapshot
Smart Detection
- Motion Detection: Supported
- Target Detection: Human and Vehicle Detection
LED and IR Distance
- LED: 4 pcs IR & Warm-light dual-wick LED
- IR Distance: 30–40 m
Lens
- Focal Length: 4 mm F1.6 Fixed Lens
Language Options
- English, Simplified Chinese, Traditional Chinese, German, Italian, Turkish, Polish, Korean, Japanese, Russian, Ukrainian, Persian
Network Services
- Protocols: HTTP / RTSP / FTP / SMTP / DHCP / NTP / NFS, etc.
- P2P: Yes
- Web Access: IE, Firefox (32-bit ESR), Chrome, Edge, etc.
- Media: CMS, Android, iOS
- ONVIF Compatibility: Version 17.06
General
- Network Port: 1 RJ45, 100Mbps
- Power Supply: 12 VDC ± 10%
- Power over Ethernet (POE): 802.3af/at 48V
- Power Consumption: < 10 W
- Operating Temperature: -30℃ to +60℃
- Operating Humidity: 10%–90% RH
