Description
Model YC-3MP-PTAOV-WF Specifications
Image Sensor
- Type: 1/2.8” 3-Megapixel CMOS
- Effective Pixels: 2304(H) x 1296(V)
- Shutter Speed: 1/20~1/10,000s
- Minimum Illuminance:
- Color: 0.1 Lux
- Black/White: 0.01 Lux
- IR Distance: Up to 30 m (98.4 ft)
- Day/Night Mode: Auto (ICR) / Color / B&W
- Wide Dynamic Range (WDR): DWDR
Lens
- Focal Length: 4mm @ F1.6
- Field of View: 90° / 50° / 110°
Video & Audio
- Video:
- Compression: H.264 / H.265
- Frame Rate: 1~25 fps
- Dual Stream: Supported
- Bitrate: 32 Kbps ~ 2 Mbps
- Audio:
- Input/Output: Built-in microphone and speaker
Network
- Communication Protocols: HTTP, DHCP, DNS, TCP/IP
- Interface Protocol: Private
- Wireless: 802.11b
- Supported Mobile OS:
- iOS 9 or later
- Android 5 or later
- Security: AES128
Intelligent AI
- Alarm Trigger: Ultravision motion detection
- Detection Distance:
- Day: 30 m
- Night: 20 m
- Accuracy: Large-scale AI algorithm with 99.9% accuracy
Battery
- Capacity: 9000 mAh rechargeable Li batteries
- Power Consumption:
- AOV Mode: 7mA (day), 11mA (night)
- Live Video: 205mA
- Stand-by Time: 1 month
- Working Time: 15 days (full-time video recording)
General
- Operating Temperature: -20 °C to 50 °C
- Power Supply: DC 5V/1A
- Ports: 1 Type-C

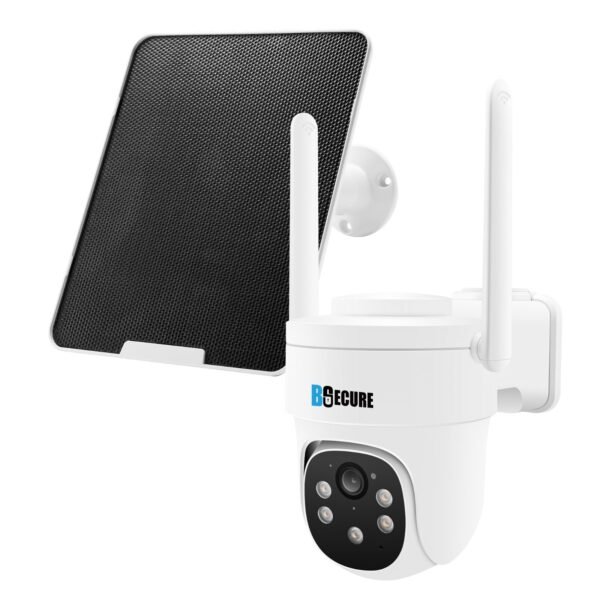

- Optional Accessory: Solar panel (6W)
- Pan & Tilt:
- Pan: 0°~355°
- Tilt: 0°~90°
- IP Rating: IP65
- Storage: TF card (Up to 512 GB)
- Dimensions: 173mm x 134mm x 147mm (L x W x H)
- Weight: 1.2 kg (including solar panel)
